Managing Relationships

You manage your list of relationships from the Administration page.

The relationship list follows the same structure as all of the other admin lists and can be used to add, modify and delete relationships.

Built-In Relationships

Certain relationships, such as location and monitors are built-in to ARDI and cannot be removed.

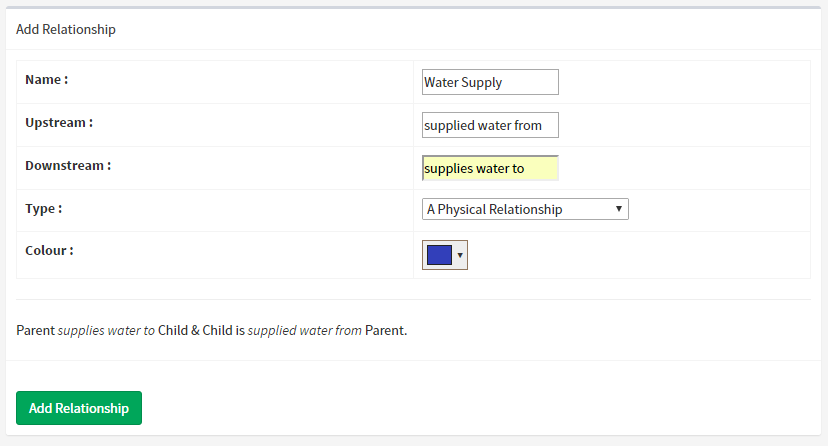

The Relationship Page

Options on this page include..

NameThe name for your relationship. Must be unique
UpstreamThe upstream directional name for the relationship
DownstreamThe downstream directional name for the relationship
TypeThe relationship type - physical, logical or hierarchial.
ColourThe colour used to draw this relationship in ARDI visualisations

Below the options is a preview of how well your new property will 'read' when being explained in plain text. You should review this to make sure that it's not too awkward to read.
